Name: Gecko® Circuit Board for HydroQuip/EasyPak EP2200 Controls - 33-0024-R6
Brand: HydroQuip
SKU: HQ0002
Price: 349.95 USD
Availability: InStock

Gecko® Circuit Board for HydroQuip MP Outdoor 8000 Series Controls - 33-0027-K

Qualifies for Free Shipping Free standard shipping to US contiguous 48 states for $100+ merchandise total.

Standard Delivery to US-48 Only This item is not available for air shipment, nor for delivery to Alaska, Hawaii, or Canada.

In stock, ready to ship
Inventory on the way

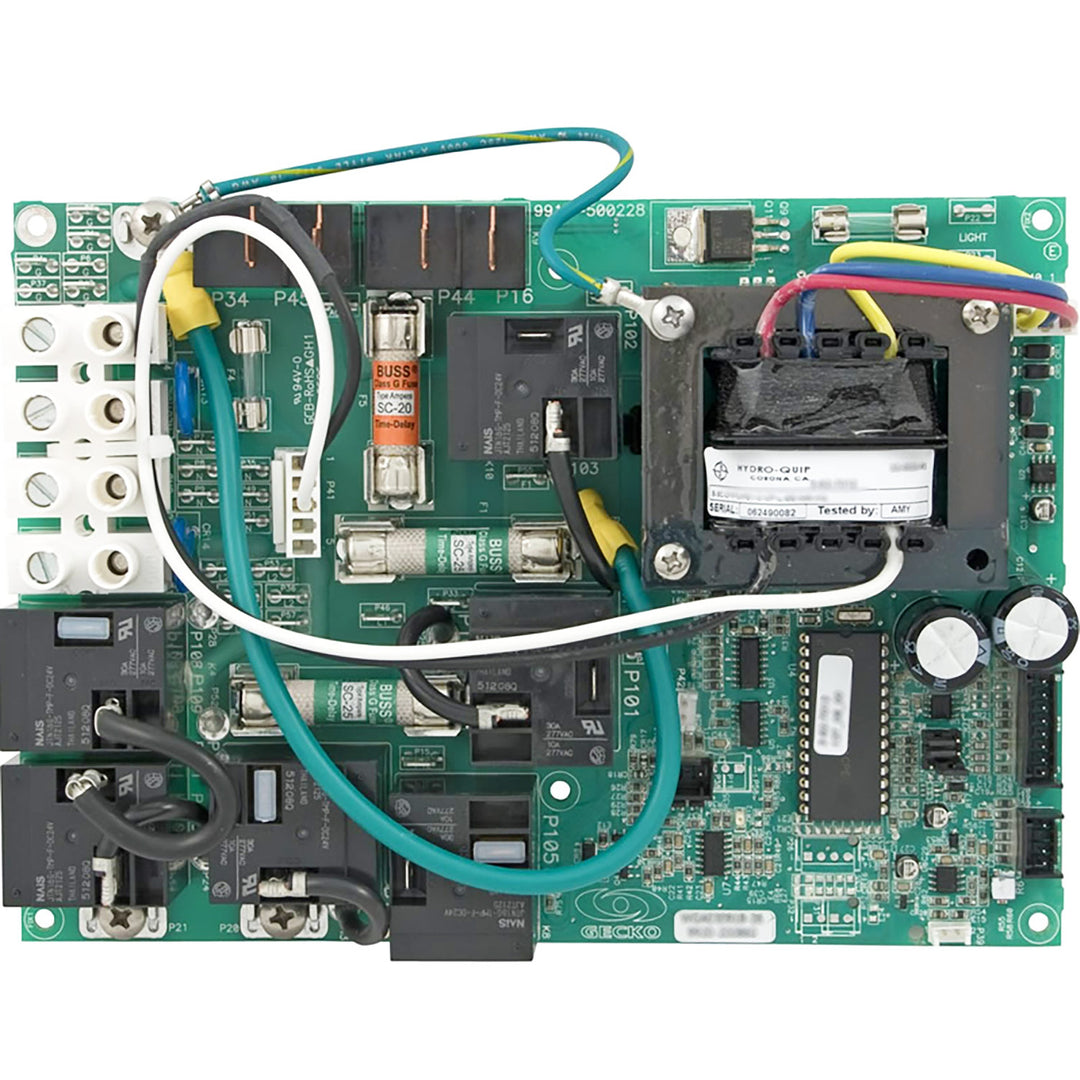

This Gecko® printed circuit board (PCB) is for HydroQuip & EasyPak hot tub control systems. Supports a primary hot tub pump, secondary pump or blower, circ pump, ozonator and light.

Genuine OEM Gecko® Board
Compatible with ECO-6 4-button digital topside control keypads

Product Notes: Replacement circuit board for EasyPak EP2200 & HydroQuip CS4200, CS6200 & CS9200; ECO-2 Series. New version of this board no longer support fiber optic lighting. Circuit boards must be identified with the chip number and/or part number to guarantee the existing control keypad and other components will function. See below for associated part and chip numbers. Circuit boards are not returnable, but are covered under warranty.

How to Find Your Circuit Board Chip Number

Details:

Primary Pump Circuit: 2-Speed - 120V/240V

Secondary Pump -OR-
Blower Circuit: 1-Speed pump or blower 120V/240V

Light Circuit:12V Spa Light

Fiber Optic Circuit:Not Supported

Ozone/UV-C Circuit: 120V/240V

Circulation Pump Circuit:120V/240V

A/V Circuit:Not Supported

Compatible Control Keypad Type: ECO-6 4-button Digital

Compatible Keypad Part Numbers:HQ0044, 34-0200

Chip/Part Numbers: HQP330024R6, 33-0024, 33-0024-K, 33-0024-R1, 33-0024-R2, 33-0024-R3, 33-0024-R4, 33-0024-R5, 33-0024-R6, 59-355-1097, 9298-20

Warranty: 1 year Limited Manufacturer’s Warranty

IMPORTANT: Damage due to incorrect installation is not covered under warranty.

Came in a timely manner thank you

Installed it in about 45 minutes had my tub up and going again tech support was awsome

It is working

It works after a bit more effort. I like the design better than the original. Looks like they learned from the melted relays and foils of the original design, and built this rev to prevent that. My original board had the temperature sensors hard wired instead of using plugs, and connectors were not supplied. I had to improvise. Hind sight I probably should have called about the connectors, but I wasn't that patient. Wanted to get it working before it froze and I had a bigger mess. Also I wired it wrong initially. Followed the instructions supplied and had error messages and pump and heater didn't work. Downloaded other manuals from the website, and found explanation that it came setup for 120, and if you were using 240, to move jumpers. Then it started working fine and has for a week so far. I own some of the issues, but better documentation could have avoided them. Just happy it's working without having to replace the whole system.
